Programmable Engine Management/Plug-and-Play Standalone ECUs

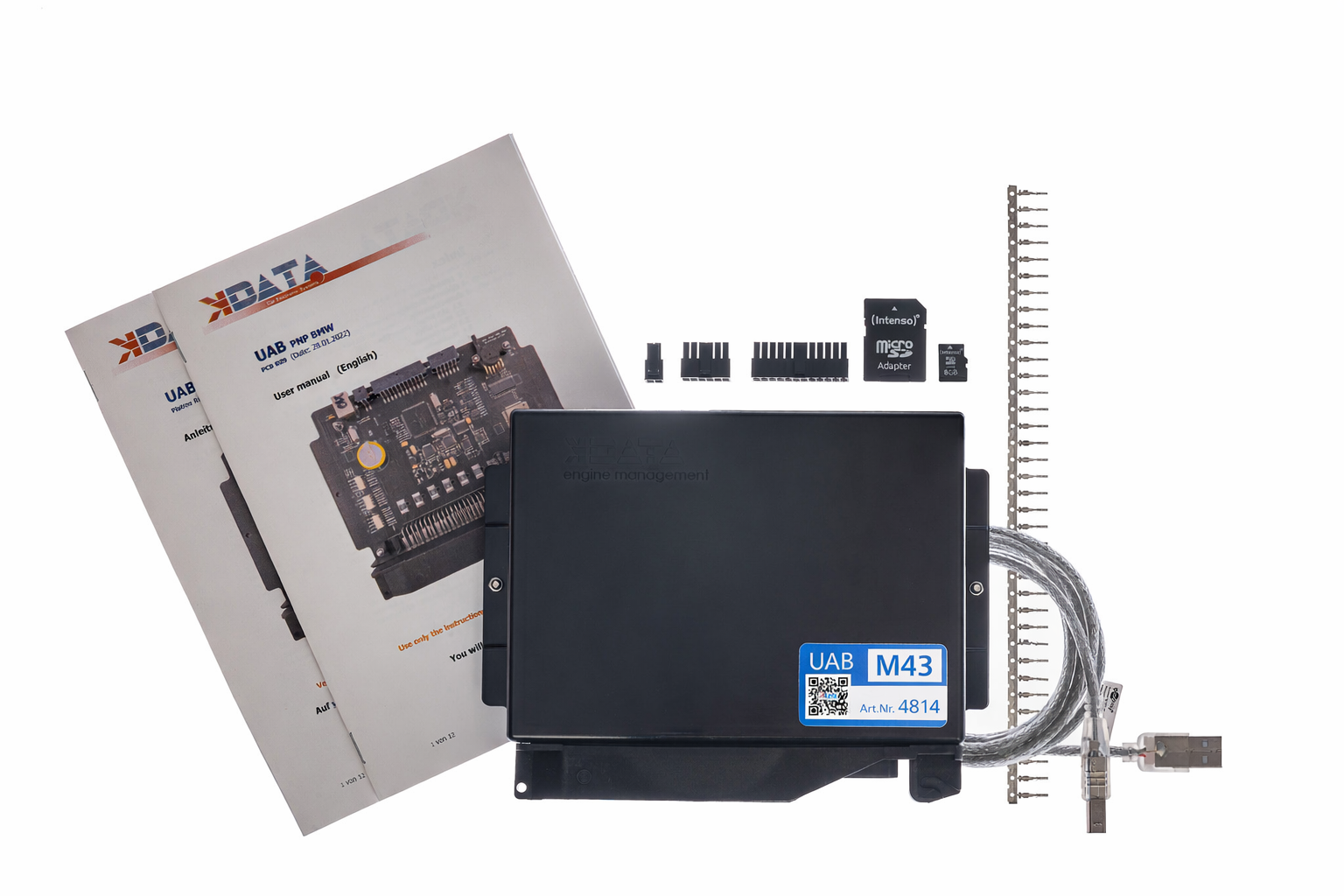

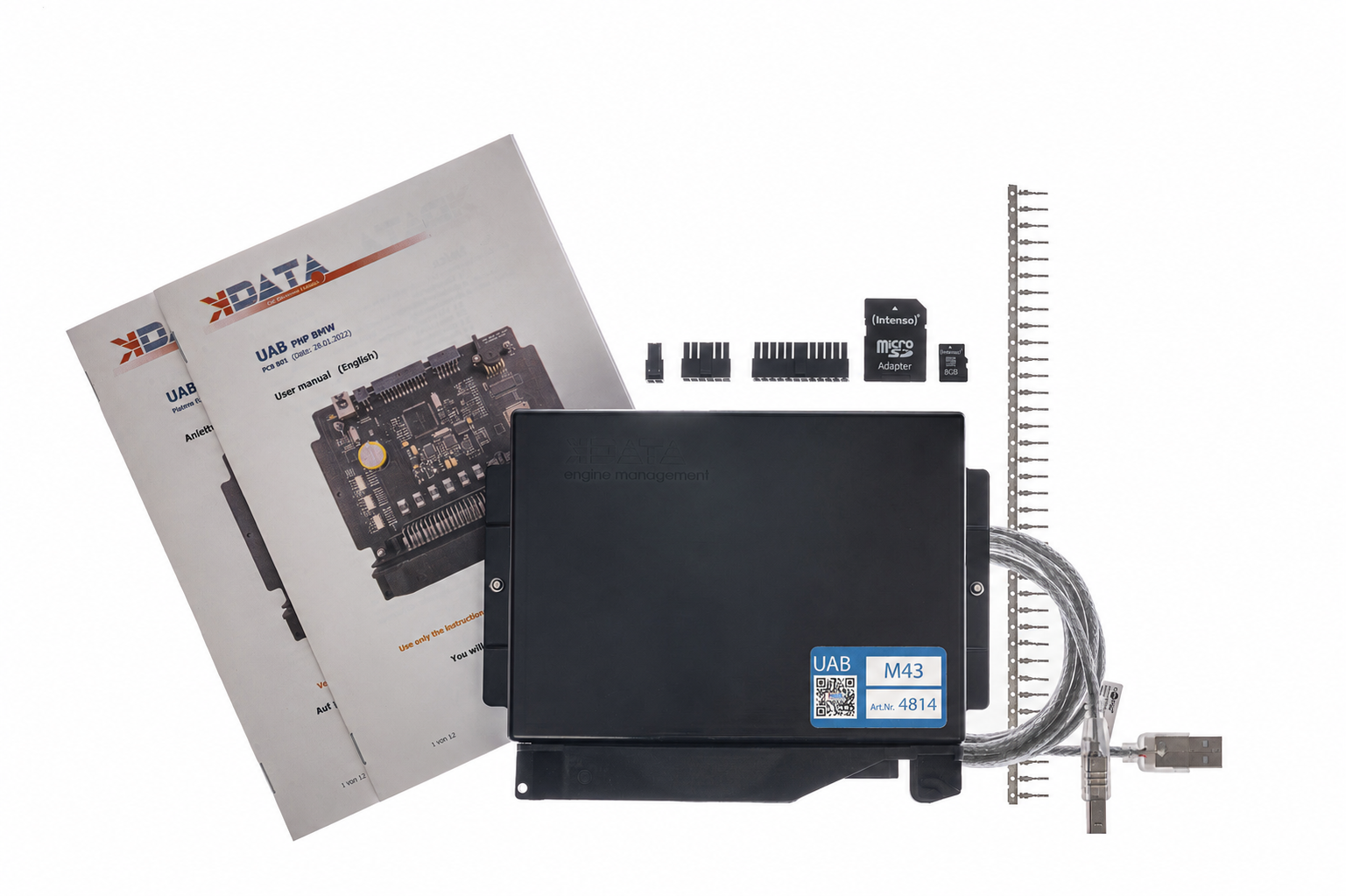

UAB - the evolution of kdFi
UAB – More Performance, More Functions, More Possibilities
UAB offers a wide range of advanced functions for demanding engine management applications. VANOS, map-controlled thermostats and electric fans can be used, individually configured or disabled as required.
An integrated ESP32 coprocessor further increases flexibility and enables additional functions such as vehicle-specific CAN bus integration and Drive-by-Wire, for example for the BMW M54 in the E46.
The extended range of inputs, outputs and control functions makes UAB suitable for both plug-and-play applications and individual engine management projects.
Advantages at a Glance
- fully sequential fuel injection and ignition
- integrated 3 bar boost pressure sensor
- boost pressure control
- adjustable knock control
- input for K-type exhaust gas temperature sensor
- SD card data logger with real-time clock
- CAN bus for dashboards, displays and additional devices
- multiple inputs for map switching, launch control and additional functions
Recommended accessories
Expertise for successful tuning
Advantages of a Programmable ECU
A programmable ECU allows the engine management system to be individually adapted to the engine, its components and the intended application. Unlike a standard factory ECU, important parameters can be adjusted and tuned to suit the specific vehicle configuration.
Individual Engine Tuning
Fuel injection, ignition and other parameters can be precisely adjusted to suit the individual engine. This allows the engine management system to be adapted to different requirements and vehicle configurations.
Optimised for Engine Modifications
Modifications such as different fuel injectors, camshafts, intake or exhaust systems, as well as turbocharger and supercharger conversions, can be taken into account and individually tuned.
Diagnostics and Data Analysis
Detailed operating data and data logging make engine tuning easier and help with targeted diagnostics and troubleshooting. Recorded data can also be used to identify irregularities and optimise the engine calibration more precisely.
Flexible for Future Upgrades
If the vehicle is modified again at a later stage, the calibration can simply be adapted to the new configuration. A programmable ECU therefore remains flexible even as the engine setup evolves.
