UAB BMW M60





















€680.00
not currently available
Product information "UAB BMW M60"
Universal adapter board for the BMW M60 engine with an 88-pin connector suitable for the engine wiring harness.
The board contains a powerful Motorola 9S12XEP100 which is also used in the Megasquirt 3.
A Tunerstudio basic setup for the M60 engine can be found under Downloads.
Features:
- Cable harness and sensors can be used without changes
- full-sequential ignition and injection
- adjustable knock control with TPIC8101
- 3 bar boost sensor integrated
- integrated SD cards logger with real time clock
- input for K-type exhaust temperature sensor
- boost control
- CAN Bus (e.g. for dashboards, displays or accessories)
- several inputs for circuit change, Launch control...
- several free digital and PWM outputs
- updateable coprocessor (ESP32) for Lambda, Bluetooth and CAN
- Bluetooth with adjustable pin code
- Broadband Lambda Controller
This product is only street legal with special permission in most countries. Please check local laws before using on official streets.
Automatic transmissions are currently not supported.

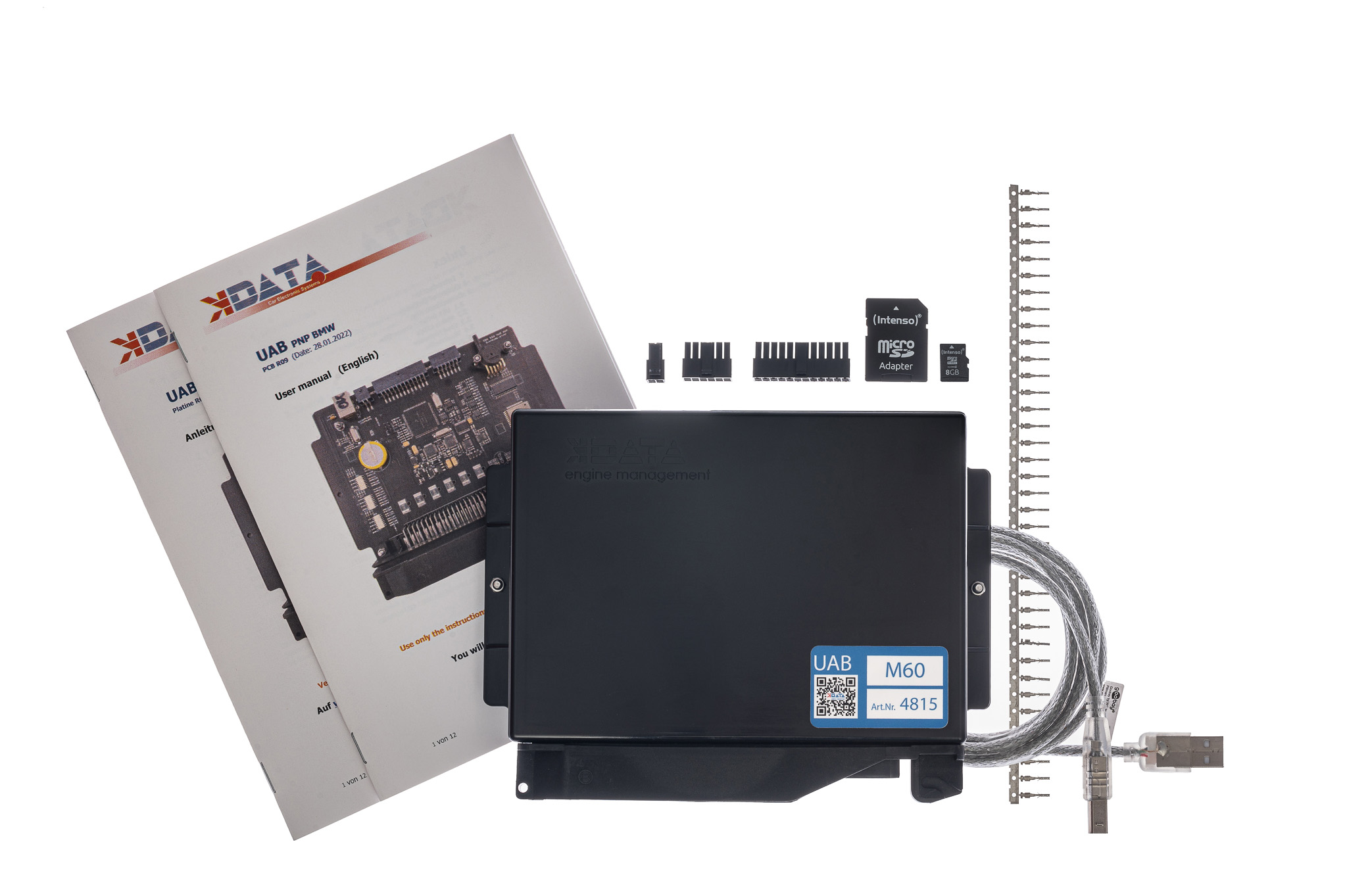

Scope of delivery:
- UAB BMW M60 (tested on a engine)
- SD Card
- USB Cable
- UAB Manual
Accessories

Prepared connection cable for the Lambdasonde LSU 4.2,ready to plug in for the PNP Engine Control UnitsLength: 1 metre

Prepared connection cable for the Lambdasonde LSU 4.2,ready to plug in for the PNP Engine Control UnitsLength: 2 metres

Wideband Lambda Sensor LSU 4.2- used with integrated kdFi V1.4 Lambdacontroller
