kdFi V1.4 PNP BMW M40
Product information "kdFi V1.4 PNP BMW M40"

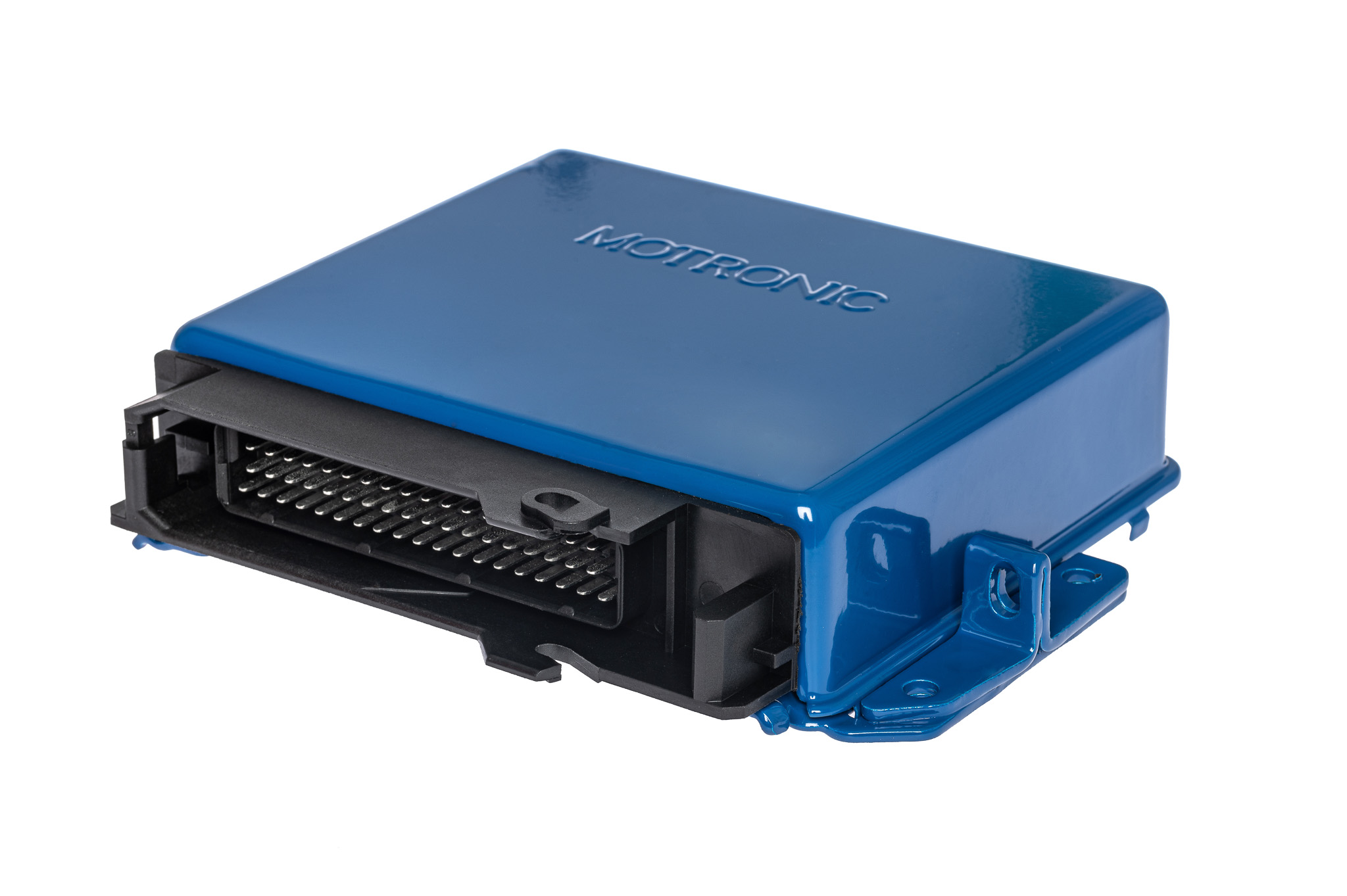

The kdFi V1.4 is installed in a Motronic compatible housing and loaded with an initial setup for M40 engines.
(not for the E36 with 88-pin control unit)
The control unit can be used on the following Bosch Motronics:
0 261 200 157
0 261 200 174
0 261 200 387
0 261 200 989
If your number is not listed, please contact us, using the contact form
Customer to do:
- Replace Throttle Position Switch with Throttle Position Sensor e.g. from M50 engine (not included in delivery)
- Change Engine Management
- START ENGINE !
This product is only street legal with special permission in most countries. Please check local laws before using on official streets.
Automatic transmissions are currently not supported.
Features:
- MAP sensor based setup (can be changed to alpha-N via software)
- also suitable for turbo and compressor conversions
- full compatible to MSextra Software
- build your own setup
- MS2 onboard / Firmware MS2extra
- Fuel Table 16x16
- Ignition Table 12x12
- USB Connector
- Widebandlambdacontroller (www.breitband-lambda.de)
- prepared for single coils (seperate wires needs to be connected)
- supports stock idle valves
- user programmable relay output
- electronical boost control
- supports CAN Bus
- compatible with the Lambda Sensor LSU 4.2
Scope of delivery:
- kdFi V1.4 Plug and Play ECU
- USB Cable
- kdFi Manual
- from 01.05.24 no CD included, download software CD under available downloads
