kdFi V1.4 Modul
Picture similar to product
Product number:
3320
Manufacturer:
k-data, Alte Poststr. 5, 94036 Passau, Germany, info@k-data.org
Product information "kdFi V1.4 Modul"

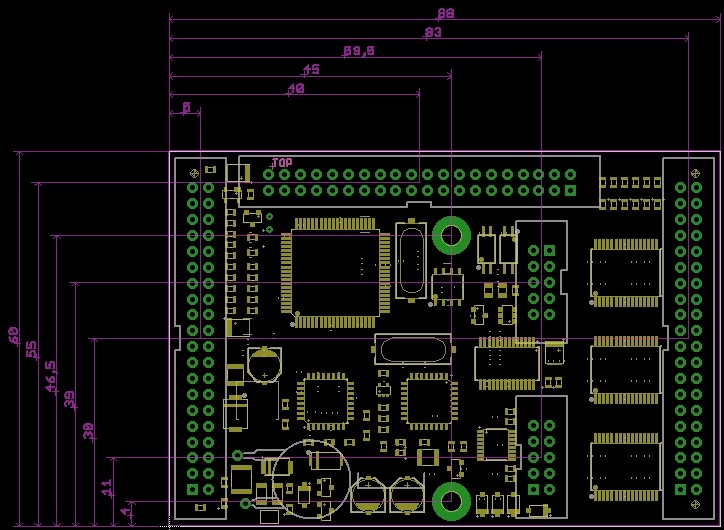

- dimensions 60mm x 88mm
- no heat sink needed
- designed as Daughterboard (Eagle library will be published for own projects)
- layouted by a specialized company
- DC isolated USB connection (Bluetooth Option)
- two seperate self adjusting inputs for crank and cam sensors (Hall or VR)
- 4 seperate overcurrent protected injectors outputs (4 more outputs at moment parallel - single usable with changed firmware )
- 6 single ignition outputs with hardware over dwell protection (no need to disconnect during firmwareupdate)
- 6 more outputs parallel for engines up to V12 in wasted spark
- integrated Widebandlambdacontroler from www.Breitband-Lambda.de
- lots of spare portpins for own software changes
